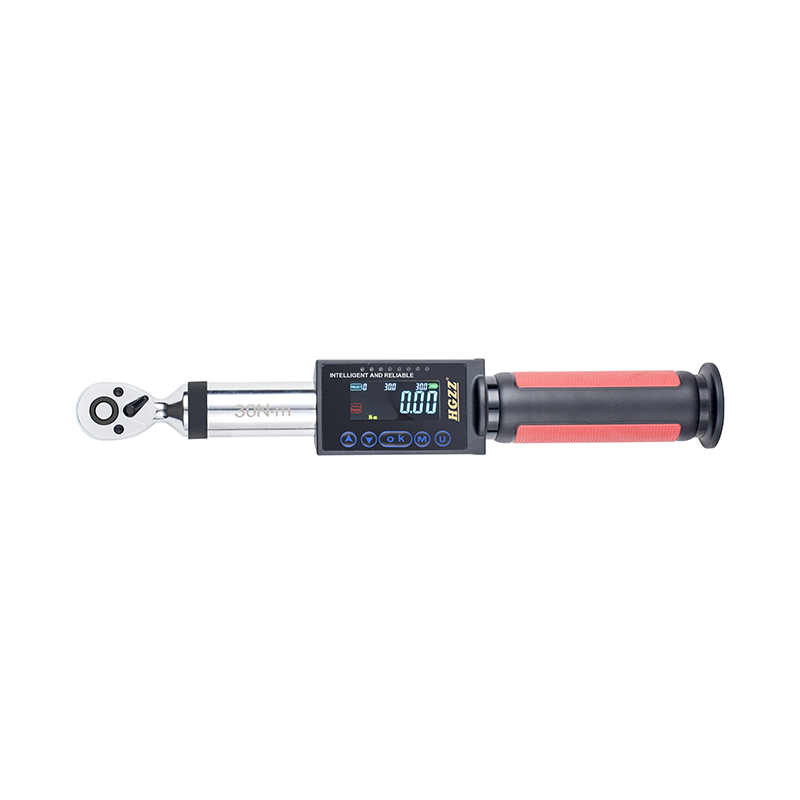

HG-SX140030A 1/4"30N•m Torque Wrench Set

HG-SX140030A 1/4"30N•m Torque Wrench Set
Corresponding product
HG-SX140030A 1/4"30N•m Torque Wrench Set
HG-SX380085A 3/8"85N•m Torque Wrench Set
HG-SX380135A 3/8"135N•m Torque Wrench Set
HG-SX120135A 1/2"135N•m Torque Wrench Set
HG-SX120220A 1/2"220N•m Torque Wrench Set
HG-SX120340A 1/2"340N•m Torque Wrench Set
HG-SX340500A 3/4"500N•m Torque Wrench Set
HG-SX341000A 3/4"1000N•m Torque Wrench Set
HG-SX011500A 1" 1500N•m Torque Wrench Set

Product Details

Digital display torque wrench, allowing precise torque measurement range: 0.5-10 Nm/4.425-88.51 in lbs/10.2-102 kgf.cm. Minimum segmentation value: 0.01
High precision: 72 ratchet teeth, clockwise accuracy ± 2%, counterclockwise accuracy ± 2% (accounting for 20% to 100% of the total measurement range). Can be operated clockwise or counterclockwise.
3 measurement modes and buzzer reminder: real-time mode, peak mode, and preset mode. When the equivalent range reaches 90%, the LED light will light up to indicate, and when the equivalent range reaches 95%, the buzzer will sound to indicate that the torque information can be grasped in a timely manner. When the range reaches 100%, the vibration reminder will be turned on, allowing the user to grasp the information visually, audibly, and tactilely, avoiding damage to the bolt;
4 counting units: (N•m) Kg.m  Ib.in  Ib.ft)。 It has 999 sets of storable dataset values. It can automatically shut down within 5 minutes.
Packaging: The digital torque wrench is made of high-quality stainless steel and industrial plastic. It is packaged in a box to protect it from wear and tear when not in use, achieving long-lasting performance. (Note: Before use, please use a special tool to loosen the screws on the back cover and insert 2 AAA batteries.)

Product basic parameter

Length

 405mm

Width

 35 mm

Height

 38 mm

Net weight

 663g

Torque

 10N. m

Number of teeth

 45T/72T

Surface

 Bright Silver/Pearl Nickel Matte

Gear material

 42Cr Mo

Rod material

 42Cr Mo

Handle

 Two-tone customizable color

Certificate

 EU GTS certification

Drive head 6.3mm(1/4") 6.3mm(1/4") 10mm(3/8") 10mm(3/8") 12.5mm(1/2") 12.5mm(1/2") 12.5mm(1/2") 19mm(3/4") 19mm(3/4") 25.4mm(1")
Torque range(N•m) 10 30 85 135 135 220 340 500 1000 1500
Torque accuracy% 2% 2% 2% 2% 2% 2% 2% 2% 2% 2%
Product length(mm) 305 305 335 420 420 530 650 800 1000 1250
Product weight(g) 663 663 800 944 1027 1322 1507 2300 4410 6288
Made in China
